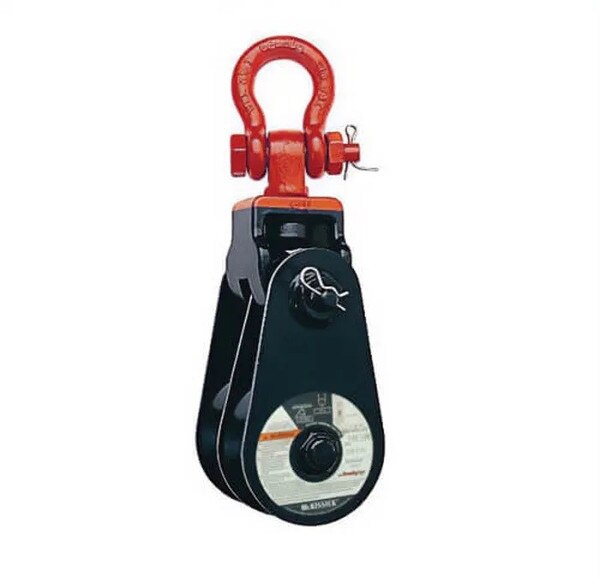

Crosby 409 Light Champion Double Sheave Snatch Block with Self-Colored Shackle, 8" Sheave for 5/8" - 3/4" Wire, 12 Ton WLL
Details
Featuring two sheaves, this snatch block enables additional mechanical advantage. With its four-part line reeving requirement, you can handle demanding lifting tasks. The sheave is crafted to accommodate wirelines ranging from 5/8" to 3/4", providing a precise and secure fit.
With a 12 ton Working Load Limit, this snatch block is engineered to handle substantial load. The opening feature allows for easy insertion of wireline in both sheaves, and with the removal of just one bolt, you can conveniently set up. Equipped with pressure lube fittings, the center pin provides smooth movement and efficient load transfer.
• Two sheave snatch block to allow for additional mechanical advantage, must be reeved with four parts of line
• Sheave designed for 5/8" - 3/4" wire
• 12 ton Working Load Limit
• Opening feature permits easy insertion of wireline in both sheaves with removal of one bolt
• Center pin equipped with pressure lube fittings
• Brand: Crosby
• Manufacturer part number: 105184
